# Rasterized spheres demo

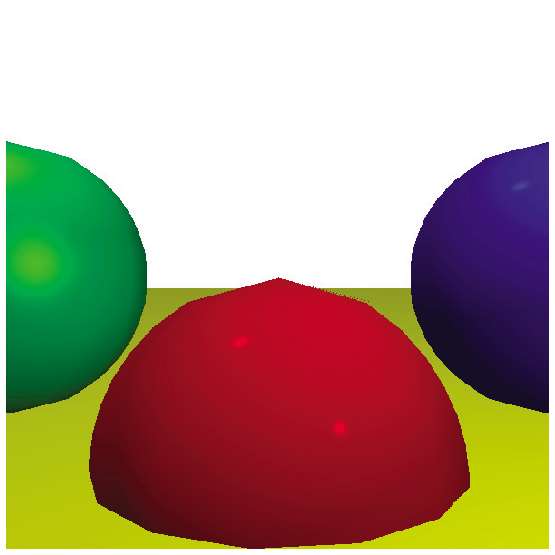

This demo uses the rasterizer to render the scene used to test the raytracer.

<div class="centered">
<canvas id="canvas" width=600 height=600 style="border: 1px grey solid"></canvas>
</div>

<script>
"use strict";

// ======================================================================
//  Low-level canvas access.
// ======================================================================

let canvas = document.getElementById("canvas");
let canvas_context = canvas.getContext("2d");
let canvas_buffer = canvas_context.getImageData(0, 0, canvas.width, canvas.height);

// A color.
function Color(r, g, b) {
  return {
    r, g, b,
    mul: function(n) { return new Color(this.r*n, this.g*n, this.b*n); },
  };
}

// The PutPixel() function.
function PutPixel(x, y, color) {
  x = canvas.width/2 + (x | 0);
  y = canvas.height/2 - (y | 0) - 1;

  if (x < 0 || x >= canvas.width || y < 0 || y >= canvas.height) {
    return;
  }

  let offset = 4*(x + canvas_buffer.width*y);
  canvas_buffer.data[offset++] = color.r;
  canvas_buffer.data[offset++] = color.g;
  canvas_buffer.data[offset++] = color.b;
  canvas_buffer.data[offset++] = 255; // Alpha = 255 (full opacity)
}


// Displays the contents of the offscreen buffer into the canvas.
function UpdateCanvas() {
  canvas_context.putImageData(canvas_buffer, 0, 0);
}


// ======================================================================
//  Depth buffer.
// ======================================================================
let depth_buffer = Array();
depth_buffer.length = canvas.width * canvas.height;

function UpdateDepthBufferIfCloser(x, y, inv_z) {
  x = canvas.width/2 + (x | 0);
  y = canvas.height/2 - (y | 0) - 1;

  if (x < 0 || x >= canvas.width || y < 0 || y >= canvas.height) {
    return false;
  }

  let offset = x + canvas.width*y;
  if (depth_buffer[offset] == undefined || depth_buffer[offset] < inv_z) {
    depth_buffer[offset] = inv_z;
    return true;
  }
  return false;
}


// ======================================================================
//  Data model.
// ======================================================================

// A Point.
function Pt(x, y, h) {
  return {x, y, h};
}


// A 3D vertex.
function Vertex(x, y, z) {
  return {
    x, y, z,
    add: function(v) { return new Vertex(this.x + v.x, this.y + v.y, this.z + v.z); },
    sub: function(v) { return new Vertex(this.x - v.x, this.y - v.y, this.z - v.z); },
    mul: function(n) { return new Vertex(this.x*n, this.y*n, this.z*n); },
    dot: function(vec) { return this.x*vec.x + this.y*vec.y + this.z*vec.z; },
    length: function() { return Math.sqrt(this.dot(this)); },
  }
}


// A 4D vertex (a 3D vertex in homogeneous coordinates).
function Vertex4(arg1, y, z, w) {
  if (y == undefined) {
    this.x = arg1.x;
    this.y = arg1.y;
    this.z = arg1.z;
    this.w = arg1.w | 1;
  } else {
    this.x = arg1;
    this.y = y;
    this.z = z;
    this.w = w;
  }
  this.add = function(v) { return new Vertex4(this.x + v.x, this.y + v.y, this.z + v.z); };
  this.sub = function(v) { return new Vertex4(this.x - v.x, this.y - v.y, this.z - v.z, this.w - v.w); };
  this.mul = function(n) { return new Vertex4(this.x*n, this.y*n, this.z*n, this.w); };
  this.dot = function(vec) { return this.x*vec.x + this.y*vec.y + this.z*vec.z; };
  this.cross = function(v2) { return new Vertex4(this.y*v2.z - this.z*v2.y, this.z*v2.x - this.x*v2.z, this.x*v2.y - this.y*v2.x); };
  this.length = function() { return Math.sqrt(this.dot(this)); };
}


// A 4x4 matrix.
function Mat4x4(data) {
  return {data};
}


const Identity4x4 = new Mat4x4([[1, 0, 0, 0], [0, 1, 0, 0], [0, 0, 1, 0], [0, 0, 0, 1]]);


// A Triangle.
function Triangle(indexes, color, normals) {
  return {indexes, color, normals}
}


// A Model.
function Model(vertices, triangles, bounds_center, bounds_radius) {
  return {vertices, triangles, bounds_center, bounds_radius};
}


// An Instance.
function Instance(model, position, orientation, scale, specular) {
  this.model = model;
  this.position = position;
  this.orientation = orientation || Identity4x4;
  this.scale = scale || 1.0;
  this.specular = specular || 50;
  this.transform = MultiplyMM4(MakeTranslationMatrix(this.position), MultiplyMM4(this.orientation, MakeScalingMatrix(this.scale)));
}


// The Camera.
function Camera(position, orientation) {
  this.position = position;
  this.orientation = orientation;
  this.clipping_planes = [];
}


// A Clipping Plane.
function Plane(normal, distance) {
  return {normal, distance};
}


// A Light.
const LT_AMBIENT = 0;
const LT_POINT = 1;
const LT_DIRECTIONAL = 2;

function Light(type, intensity, vector) {
  return {type, intensity, vector};
}


// ======================================================================
//  Linear algebra and helpers.
// ======================================================================

// Makes a transform matrix for a rotation around the OY axis.
function MakeOYRotationMatrix(degrees) {
  let cos = Math.cos(degrees*Math.PI/180.0);
  let sin = Math.sin(degrees*Math.PI/180.0);

  return new Mat4x4([[cos, 0, -sin, 0],
                     [  0, 1,    0, 0],
                     [sin, 0,  cos, 0],
                     [  0, 0,    0, 1]])
}


// Makes a transform matrix for a translation.
function MakeTranslationMatrix(translation) {
  return new Mat4x4([[1, 0, 0, translation.x],
                     [0, 1, 0, translation.y],
                     [0, 0, 1, translation.z],
                     [0, 0, 0,             1]]);
}


// Makes a transform matrix for a scaling.
function MakeScalingMatrix(scale) {
  return new Mat4x4([[scale,     0,     0, 0],
                     [    0, scale,     0, 0],
                     [    0,     0, scale, 0],
                     [    0,     0,     0, 1]]);
}


// Multiplies a 4x4 matrix and a 4D vector.
function MultiplyMV(mat4x4, vec4) {
  let result = [0, 0, 0, 0];
  let vec = [vec4.x, vec4.y, vec4.z, vec4.w];

  for (let i = 0; i < 4; i++) {
    for (let j = 0; j < 4; j++) {
      result[i] += mat4x4.data[i][j]*vec[j];
    }
  }

  return new Vertex4(result[0], result[1], result[2], result[3]);
}


// Multiplies two 4x4 matrices.
function MultiplyMM4(matA, matB) {
  let result = new Mat4x4([[0, 0, 0, 0], [0, 0, 0, 0], [0, 0, 0, 0], [0, 0, 0, 0]]);

  for (let i = 0; i < 4; i++) {
    for (let j = 0; j < 4; j++) {
      for (let k = 0; k < 4; k++) {
        result.data[i][j] += matA.data[i][k]*matB.data[k][j];
      }
    }
  }

  return result;
}


// Transposes a 4x4 matrix.
function Transposed(mat) {
  let result = new Mat4x4([[0, 0, 0, 0], [0, 0, 0, 0], [0, 0, 0, 0], [0, 0, 0, 0]]);
  for (let i = 0; i < 4; i++) {
    for (let j = 0; j < 4; j++) {
      result.data[i][j] = mat.data[j][i];
    }
  }
  return result;
}


// ======================================================================
//  Rasterization code.
// ======================================================================

// Scene setup.
let viewport_size = 1;
let projection_plane_z = 1;


function Interpolate(i0, d0, i1, d1) {
  if (i0 == i1) {
    return [d0];
  }

  let values = [];
  let a = (d1 - d0) / (i1 - i0);
  let d = d0;
  for (let i = i0; i <= i1; i++) {
    values.push(d);
    d += a;
  }

  return values;
}


function DrawLine(p0, p1, color) {
  let dx = p1.x - p0.x, dy = p1.y - p0.y;

  if (Math.abs(dx) > Math.abs(dy)) {
    // The line is horizontal-ish. Make sure it's left to right.
    if (dx < 0) { let swap = p0; p0 = p1; p1 = swap; }

    // Compute the Y values and draw.
    let ys = Interpolate(p0.x, p0.y, p1.x, p1.y);
    for (let x = p0.x; x <= p1.x; x++) {
      PutPixel(x, ys[(x - p0.x) | 0], color);
    }
  } else {
    // The line is verical-ish. Make sure it's bottom to top.
    if (dy < 0) { let swap = p0; p0 = p1; p1 = swap; }

    // Compute the X values and draw.
    let xs = Interpolate(p0.y, p0.x, p1.y, p1.x);
    for (let y = p0.y; y <= p1.y; y++) {
      PutPixel(xs[(y - p0.y) | 0], y, color);
    }
  }
}


function DrawWireframeTriangle(p0, p1, p2, color) {
  DrawLine(p0, p1, color);
  DrawLine(p1, p2, color);
  DrawLine(p0, p2, color);
}


// Converts 2D viewport coordinates to 2D canvas coordinates.
function ViewportToCanvas(p2d) {
  return new Pt(
    p2d.x * canvas.width / viewport_size | 0,
    p2d.y * canvas.height / viewport_size | 0);
}


// Converts 2D canvas coordinates to 2D viewport coordinates.
function CanvasToViewport(p2d) {
  return new Pt(
    p2d.x * viewport_size / canvas.width,
    p2d.y * viewport_size / canvas.height);
}


function ProjectVertex(v) {
  return ViewportToCanvas(new Pt(
    v.x * projection_plane_z / v.z,
    v.y * projection_plane_z / v.z));
}


function UnProjectVertex(x, y, inv_z) {
  let oz = 1.0 / inv_z;
  let ux = x*oz / projection_plane_z;
  let uy = y*oz / projection_plane_z;
  let p2d = CanvasToViewport(Pt(ux, uy));
  return new Vertex(p2d.x, p2d.y, oz);
}


// Sort the points from bottom to top.
// Technically, sort the indexes to the vertex indexes in the triangle from bottom to top.
function SortedVertexIndexes(vertex_indexes, projected) {
  let indexes = [0, 1, 2];

  if (projected[vertex_indexes[indexes[1]]].y < projected[vertex_indexes[indexes[0]]].y) { let swap = indexes[0]; indexes[0] = indexes[1]; indexes[1] = swap; }
  if (projected[vertex_indexes[indexes[2]]].y < projected[vertex_indexes[indexes[0]]].y) { let swap = indexes[0]; indexes[0] = indexes[2]; indexes[2] = swap; }
  if (projected[vertex_indexes[indexes[2]]].y < projected[vertex_indexes[indexes[1]]].y) { let swap = indexes[1]; indexes[1] = indexes[2]; indexes[2] = swap; }

  return indexes;
}


function ComputeTriangleNormal(v0, v1, v2) {
  let v0v1 = v1.sub(v0);
  let v0v2 = v2.sub(v0);
  return v0v1.cross(v0v2);
}


function ComputeIllumination(vertex, normal, camera, lights, specular) {
  let illumination = 0;
  for (let l = 0; l < lights.length; l++) {
    let light = lights[l];
    if (light.type == LT_AMBIENT) {
      illumination += light.intensity;
      continue;
    }

    let vl;
    if (light.type == LT_DIRECTIONAL) {
      let cameraMatrix = Transposed(camera.orientation);
      let rotated_light = MultiplyMV(cameraMatrix, new Vertex4(light.vector));
      vl = rotated_light;
    } else if (light.type == LT_POINT) {
      let cameraMatrix = MultiplyMM4(Transposed(camera.orientation), MakeTranslationMatrix(camera.position.mul(-1)));
      let transformed_light = MultiplyMV(cameraMatrix, new Vertex4(light.vector));
      vl = vertex.mul(-1).add(transformed_light);
    }

    // Diffuse component.
    let cos_alpha = vl.dot(normal) / (vl.length() * normal.length());
    if (cos_alpha > 0) {
      illumination += cos_alpha * light.intensity;
    }

    // Specular component.
    let reflected = normal.mul(2*normal.dot(vl)).sub(vl);
    let view = camera.position.sub(vertex);

    let cos_beta = reflected.dot(view) / (reflected.length() * view.length());
    if (cos_beta > 0) {
      illumination += Math.pow(cos_beta, specular) * light.intensity;
    }
  }
  return illumination;
}


const SM_FLAT = 0;
const SM_GOURAUD = 1;
const SM_PHONG = 2;

const ShadingModel = SM_PHONG;
const UseVertexNormals = true;

function EdgeInterpolate(y0, v0, y1, v1, y2, v2) {
  let v01 = Interpolate(y0, v0, y1, v1);
  let v12 = Interpolate(y1, v1, y2, v2);
  let v02 = Interpolate(y0, v0, y2, v2);
  v01.pop();
  let v012 = v01.concat(v12);
  return [v02, v012];
}


function RenderTriangle(triangle, vertices, projected, camera, lights, orientation, specular) {
  // Compute triangle normal. Use the unsorted vertices, otherwise the winding of the points may change.
  let normal = ComputeTriangleNormal(vertices[triangle.indexes[0]], vertices[triangle.indexes[1]], vertices[triangle.indexes[2]]);

  // Backface culling.
    let vertex_to_camera = vertices[triangle.indexes[0]].mul(-1);  // Should be Subtract(camera.position, vertices[triangle.indexes[0]])
    if (vertex_to_camera.dot(normal) <= 0) {
      return;
  }

  // Sort by projected point Y.
  let indexes = SortedVertexIndexes(triangle.indexes, projected);
  let [i0, i1, i2] = indexes;
  let [v0, v1, v2] = [ vertices[triangle.indexes[i0]], vertices[triangle.indexes[i1]], vertices[triangle.indexes[i2]] ];

  // Get attribute values (X, 1/Z) at the vertices.
  let p0 = projected[triangle.indexes[i0]];
  let p1 = projected[triangle.indexes[i1]];
  let p2 = projected[triangle.indexes[i2]];

  // Compute attribute values at the edges.
  let [x02, x012] = EdgeInterpolate(p0.y, p0.x, p1.y, p1.x, p2.y, p2.x);
  let [iz02, iz012] = EdgeInterpolate(p0.y, 1.0/v0.z, p1.y, 1.0/v1.z, p2.y, 1.0/v2.z);

  if (UseVertexNormals) {
    let transform = MultiplyMM4(Transposed(camera.orientation), orientation);
    var normal0 = MultiplyMV(transform, new Vertex4(triangle.normals[i0]));
    var normal1 = MultiplyMV(transform, new Vertex4(triangle.normals[i1]));
    var normal2 = MultiplyMV(transform, new Vertex4(triangle.normals[i2]));
  } else {
    var normal0 = normal;
    var normal1 = normal;
    var normal2 = normal;
  }

  let intensity;
  if (ShadingModel == SM_FLAT) {
    // Flat shading: compute lighting for the entire triangle.
    let center = Vertex((v0.x + v1.x + v2.x)/3.0, (v0.y + v1.y + v2.y)/3.0, (v0.z + v1.z + v2.z)/3.0);
    intensity = ComputeIllumination(center, normal0, camera, lights, specular);
  } else if (ShadingModel == SM_GOURAUD) {
    // Gouraud shading: compute lighting at the vertices, and interpolate.
    let i0 = ComputeIllumination(v0, normal0, camera, lights, specular);
    let i1 = ComputeIllumination(v1, normal1, camera, lights, specular);
    let i2 = ComputeIllumination(v2, normal2, camera, lights, specular);
    var [i02, i012] = EdgeInterpolate(p0.y, i0, p1.y, i1, p2.y, i2);
  } else if (ShadingModel == SM_PHONG) {
    // Phong shading: interpolate normal vectors.
    var [nx02, nx012] = EdgeInterpolate(p0.y, normal0.x, p1.y, normal1.x, p2.y, normal2.x);
    var [ny02, ny012] = EdgeInterpolate(p0.y, normal0.y, p1.y, normal1.y, p2.y, normal2.y);
    var [nz02, nz012] = EdgeInterpolate(p0.y, normal0.z, p1.y, normal1.z, p2.y, normal2.z);
  }


  // Determine which is left and which is right.
  let m = (x02.length/2) | 0;
  if (x02[m] < x012[m]) {
    var [x_left, x_right] = [x02, x012];
    var [iz_left, iz_right] = [iz02, iz012];
    var [i_left, i_right] = [i02, i012];

    var [nx_left, nx_right] = [nx02, nx012];
    var [ny_left, ny_right] = [ny02, ny012];
    var [nz_left, nz_right] = [nz02, nz012];
  } else {
    var [x_left, x_right] = [x012, x02];
    var [iz_left, iz_right] = [iz012, iz02];
    var [i_left, i_right] = [i012, i02];

    var [nx_left, nx_right] = [nx012, nx02];
    var [ny_left, ny_right] = [ny012, ny02];
    var [nz_left, nz_right] = [nz012, nz02];
  }

  // Draw horizontal segments.
  for (let y = p0.y; y <= p2.y; y++) {
    let [xl, xr] = [x_left[y - p0.y] | 0, x_right[y - p0.y] | 0];

    // Interpolate attributes for this scanline.
    let [zl, zr] = [iz_left[y - p0.y], iz_right[y - p0.y]];
    let zscan = Interpolate(xl, zl, xr, zr);

    let iscan, nxscan, nyscan, nzscan;
    if (ShadingModel == SM_GOURAUD) {
      let [il, ir] = [i_left[y - p0.y], i_right[y - p0.y]];
      iscan = Interpolate(xl, il, xr, ir);
    } else if (ShadingModel == SM_PHONG) {
      let [nxl, nxr] = [nx_left[y - p0.y], nx_right[y - p0.y]];
      let [nyl, nyr] = [ny_left[y - p0.y], ny_right[y - p0.y]];
      let [nzl, nzr] = [nz_left[y - p0.y], nz_right[y - p0.y]];

      nxscan = Interpolate(xl, nxl, xr, nxr);
      nyscan = Interpolate(xl, nyl, xr, nyr);
      nzscan = Interpolate(xl, nzl, xr, nzr);
    }

    for (let x = xl; x <= xr; x++) {
      let inv_z = zscan[x - xl];
      if (UpdateDepthBufferIfCloser(x, y, inv_z)) {

        if (ShadingModel == SM_FLAT) {
          // Just use the per-triangle intensity.
        } else if (ShadingModel == SM_GOURAUD) {
          intensity = iscan[x-xl];
        } else if (ShadingModel == SM_PHONG) {
          let vertex = UnProjectVertex(x, y, inv_z);
          let normal = Vertex(nxscan[x - xl], nyscan[x - xl], nzscan[x - xl]);
          intensity = ComputeIllumination(vertex, normal, camera, lights, specular);
        }

        PutPixel(x, y, triangle.color.mul(intensity));
      }
    }
  }
}


// Clips a triangle against a plane. Adds output to triangles and vertices.
function ClipTriangle(triangle, plane, triangles, vertices) {
  let v0 = vertices[triangle.indexes[0]];
  let v1 = vertices[triangle.indexes[1]];
  let v2 = vertices[triangle.indexes[2]];

  let in0 = plane.normal.dot(v0) + plane.distance > 0;
  let in1 = plane.normal.dot(v1) + plane.distance > 0;
  let in2 = plane.normal.dot(v2) + plane.distance > 0;

  let in_count = in0 + in1 + in2;
  if (in_count == 0) {
    // Nothing to do - the triangle is fully clipped out.
  } else if (in_count == 3) {
    // The triangle is fully in front of the plane.
    triangles.push(triangle);
  } else if (in_count == 1) {
    // The triangle has one vertex in. Output is one clipped triangle.
  } else if (in_count == 2) {
    // The triangle has two vertices in. Output is two clipped triangles.
  }
}


function TransformAndClip(clipping_planes, model, scale, transform) {
  // Transform the bounding sphere, and attempt early discard.
  let center = MultiplyMV(transform, new Vertex4(model.bounds_center));
  let radius = model.bounds_radius*scale;
  for (let p = 0; p < clipping_planes.length; p++) {
    let distance = clipping_planes[p].normal.dot(center) + clipping_planes[p].distance;
    if (distance < -radius) {
      return null;
    }
  }

  // Apply modelview transform.
  let vertices = [];
  for (let i = 0; i < model.vertices.length; i++) {
    vertices.push(MultiplyMV(transform, new Vertex4(model.vertices[i])));
  }

  // Clip the entire model against each successive plane.
  let triangles = model.triangles.slice();
  for (let p = 0; p < clipping_planes.length; p++) {
    let new_triangles = []
    for (let i = 0; i < triangles.length; i++) {
      ClipTriangle(triangles[i], clipping_planes[p], new_triangles, vertices);
    }
    triangles = new_triangles;
  }

  return Model(vertices, triangles, center, model.bounds_radius);
}


function RenderModel(model, camera, lights, orientation, specular) {
  let projected = [];
  for (let i = 0; i < model.vertices.length; i++) {
    projected.push(ProjectVertex(new Vertex4(model.vertices[i])));
  }
  for (let i = 0; i < model.triangles.length; i++) {
    RenderTriangle(model.triangles[i], model.vertices, projected, camera, lights, orientation, specular);
  }
}


function RenderScene(camera, instances, lights) {
  let cameraMatrix = MultiplyMM4(Transposed(camera.orientation), MakeTranslationMatrix(camera.position.mul(-1)));

  for (let i = 0; i < instances.length; i++) {
    let transform = MultiplyMM4(cameraMatrix, instances[i].transform);
    let clipped = TransformAndClip(camera.clipping_planes, instances[i].model, instances[i].scale, transform);
    if (clipped != null) {
      RenderModel(clipped, camera, lights, instances[i].orientation, instances[i].specular);
    }
  }
}


// ----- Sphere model generator -----
function GenerateSphere(divs, color) {
  let vertices = [];
  let triangles = [];

  let delta_angle = 2.0*Math.PI / divs;

  // Generate vertices and normals.
  for (let d = 0; d < divs + 1; d++) {
    let y = (2.0 / divs) * (d - divs/2);
    let radius = Math.sqrt(1.0 - y*y);
    for (let i = 0; i < divs; i++) {
      let vertex = new Vertex(radius*Math.cos(i*delta_angle), y, radius*Math.sin(i*delta_angle));
      vertices.push(vertex);
    }
  }

  // Generate triangles.
  for (let d = 0; d < divs; d++) {
    for (let i = 0; i < divs - 1; i++) {
      let i0 = d*divs + i;
      triangles.push(Triangle([i0, i0+divs+1, i0+1], color, [vertices[i0], vertices[i0+divs+1], vertices[i0+1]]));
      triangles.push(Triangle([i0, i0+divs, i0+divs+1], color, [vertices[i0], vertices[i0+divs], vertices[i0+divs+1]]));
    }
  }

  return new Model(vertices, triangles, new Vertex(0, 0, 0), 1.0);
}


// ----- Floor "plane" (because of approximate clipping, must fit in frustum -----
let size = 50;

const vertices = [
  new Vertex(-(size - 1), 0, size),
  new Vertex(   size - 1, 0, size),
  new Vertex(      0.999, 0, 1.01),
  new Vertex(     -0.999, 0, 1.01),
];

const RED = new Color(255, 0, 0);
const GREEN = new Color(0, 255, 0);
const BLUE = new Color(0, 0, 255);
const YELLOW = new Color(255, 255, 0);
const PURPLE = new Color(255, 0, 255);
const CYAN = new Color(0, 255, 255);

const triangles = [
  new Triangle([0, 1, 2], YELLOW, [new Vertex(0, 1, 0), new Vertex(0, 1, 0), new Vertex(0, 1, 0)]),
  new Triangle([0, 2, 3], YELLOW, [new Vertex(0, 1, 0), new Vertex(0, 1, 0), new Vertex(0, 1, 0)]),
];

const floor = new Model(vertices, triangles, new Vertex(0, 0, 1000), 1);

// ----------


const green_sphere = GenerateSphere(15, GREEN);
const red_sphere = GenerateSphere(15, RED);
const blue_sphere = GenerateSphere(15, BLUE);

const instances = [
  new Instance(red_sphere,   new Vertex( 0, -1, 3), Identity4x4, 1, 500),
  new Instance(green_sphere, new Vertex(-2,  0, 4), MakeOYRotationMatrix(180), 1, 10),
  new Instance(blue_sphere,  new Vertex( 2,  0, 4), Identity4x4, 1, 500),
  new Instance(floor,        new Vertex( 0, -1, 0), Identity4x4),
];

const camera = new Camera(new Vertex(0, 0, 0), Identity4x4);

let s2 = 1.0 / Math.sqrt(2);
camera.clipping_planes = [
  new Plane(new Vertex(  0,   0,  1), -1), // Near
  new Plane(new Vertex( s2,   0, s2),  0), // Left
  new Plane(new Vertex(-s2,   0, s2),  0), // Right
  new Plane(new Vertex(  0, -s2, s2),  0), // Top
  new Plane(new Vertex(  0,  s2, s2),  0), // Bottom
];

const lights = [
  new Light(LT_AMBIENT, 0.2),
  new Light(LT_POINT, 0.6, new Vertex(2, 1, 0)),
  new Light(LT_DIRECTIONAL, 0.2, new Vertex(1, 4, 4)),
];


function Render() {
  RenderScene(camera, instances, lights);
  UpdateCanvas();
}

Render();

</script>
